BEST Limit Switches

Oil Tight Limit Switches - BEST Series

Features

  • Compliant with IEC 60947-5-1
  • Silver Contact
  • Beryllium Copper Spring
  • Highly Reliable

Technical Specifcation

Electrical Specification

Maximum Rating 10A / 250 VAC
Contact Form SPDT-DB
Contact Resistance 10 m Ω
Insulation Resistance 100 MΩ @ 500 VDC
Electrical Life 1 lakh operation
High Voltage Test 1 KV AC between open contacts

Mechanical Specifcation

Contact Silver contact
Spring Beryllium Copper
Contact Action Snap Type / Normal
Terminals Screw Terminals
Mechanical Life 1 million operationn
Body Material Aluminium PDC
Cover Material MS
Terminal Material Brass
IP Rating IP-67

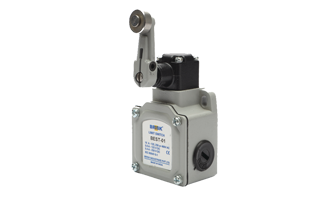

R38 Roller Lever

Action Sanp Normal
Order Code BEST-01 —

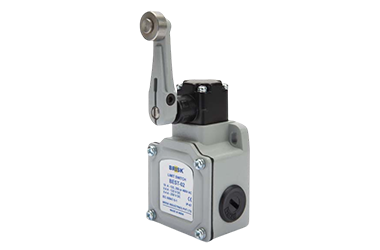

R50 Roller Lever

Action Snap Normal
Order Code BEST-02 —

R64 Roller Lever

Action Snap Normal
Order Code BEST-03 —

R76 Roller Lever

Action Snap Normal
Order Code BEST-04 —

Yoke Roller Lever

Action Snap Normal
Order Code BEST-05 —

Adjustable Roller Lever

Action Snap Normal
Order Code BEST-06 —

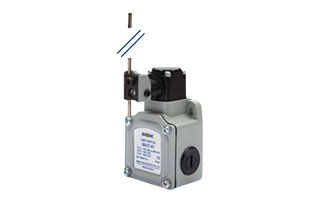

Adjustable Rod

Action Snap Normal
Order Code BEST-07 —

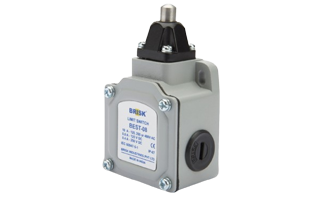

Top Plunger

Action Snap Normal
Order Code BEST-08 —

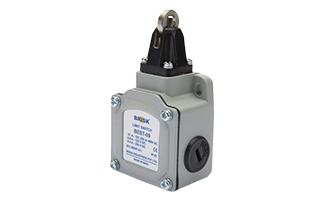

Top Roller Plunger

Action Snap Normal
Order Code BEST-09 —

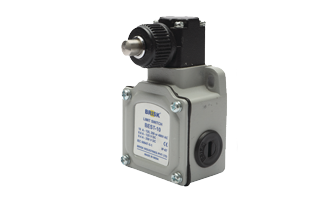

Side Plunger

Action Snap Normal
Order Code BEST-10 —

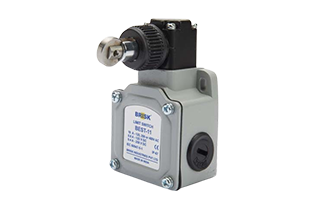

Side Roller Plunger

Action Snap Normal
Order Code BEST-11 —

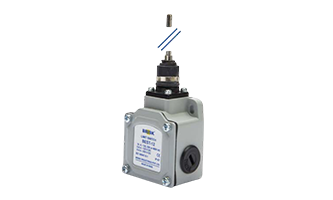

Wobble Lever

Action Snap Normal
Order Code BEST-12 —

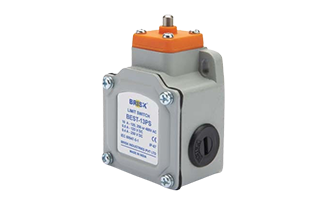

Pin Plunger

Action Snap Normal
Order Code BEST-13PS BEST-13P

Normal Roller Lever

Action Snap Normal
Order Code BEST-14PS BEST-14P

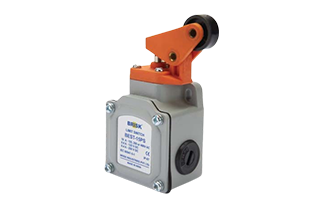

Angular Roller Lever

Action Snap Normal
Order Code BEST-15PS BEST-15P
