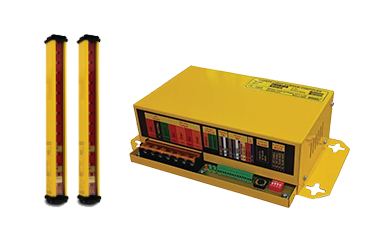

Safety Light Curtain
BRISK brand safety light curtain sensors are designed with parallel beam IR LED. Safety light curtain protect machine operator from injury and machine damage by creating a invisible sensing mesh that guard machine access point and perimeters. Output are provided with LED indications. Well thought designed for ease of installation.
Application
Hand Protection
-
- Power, Forging Pass
- Welding Press
- Molding Machine
- Automation Robots
- Processing Machine
Body / Object Protection
-
- Processing Line
- Palletizer
- Handling and Storage system
- Periphery Protection
Features
- Complying with IEC 61496-1
- Protection Degree : Complying with IP-65
- Dual Output
- Output short circuit protection
- Reverse polarity protection
- LED Indication for Each Channel
- Rugged Design
- Highly Reliable
- Easy to Operate
- Light Weight Aluminium Body
- Optical Synchronisation
Safety Light Curtain - AIC42 Series (Type 2)
Electrical Specifcations
| Operating Voltage | 9-30VDC |
|---|---|
| OSSD Output | 300mA |
| OSSD Type | PNP-NC / NPN-NO |
| No. of OSSD | 2 Nos. |
| Response Time | 10ms |
| Sensing Distance | Max. 5 meter |
Mechanical Specfications
| Terminal | M12 Circular Connector |
|---|---|
| Body Material | Aluminium |
| IP Rating | IP-65 |
Features
- Complying with IEC 61496-1
- Type 2 Sensor
- Protection Degree : Complying with IP-65
- Dual Output
- Output short circuit protection
- Reverse polarity protection
- Ease to Operate
- Rugged design
- LED Indication for Each Channel (Beam)
- Light weight Aluminium body
- Optical Synchronisation
| PITCH | 20mm | ||
|---|---|---|---|
| Beams | Order Code | Protection Height | Overall Height |
| 8 | AIC42-014-20-D1 | 140mm | 168mm |
| 16 | AIC42-030-20-D1 | 300mm | 328mm |
| 24 | AIC42-046-20-D1 | 460mm | 488mm |
| 32 | AIC42-062-20-D1 | 620mm | 648mm |
| 40 | AIC42-078-20-D1 | 780mm | 808mm |
| 48 | AIC42-094-20-D1 | 940mm | 968mm |
| PITCH | 30mm | ||
|---|---|---|---|
| Beams | Order Code | Protection Height | Overall Height |
| 8 | AIC42-021-30-D1 | 210mm | 238mm |
| 16 | AIC42-045-30-D1 | 450mm | 478mm |
| 24 | AIC42-069-30-D1 | 690mm | 718mm |
| 32 | AIC42-093-30-D1 | 930mm | 958mm |
| 40 | AIC42-117-30-D1 | 1170mm | 1198mm |
| 48 | AIC42-141-30-D1 | 1410mm | 1438mm |
| PITCH | 40mm | ||
|---|---|---|---|
| Beams | Order Code | Protection Height | Overall Height |
| 8 | AIC42-028-40-D1 | 280mm | 308mm |
| 16 | AIC42-060-40-D1 | 600mm | 628mm |
| 24 | AIC42-092-40-D1 | 920mm | 948mm |
| 32 | AIC42-124-40-D1 | 1240mm | 1268mm |
| 40 | AIC42-156-40-D1 | 1560mm | 1588mm |
| PITCH | 50mm | ||
|---|---|---|---|
| Beams | Order Code | Protection Height | Overall Height |
| 8 | AIC42-035-50-D1 | 350mm | 378mm |
| 16 | AIC42-075-50-D1 | 750mm | 778mm |
| 24 | AIC42-115-50-D1 | 1150mm | 1178mm |
| 32 | AIC42-155-50-D1 | 1550mm | 1578mm |
| 40 | AIC42-195-50-D1 | 1950mm | 1978mm |
Safety Light Curtain Controller- BLCC Series
Electrical Specifcations
| Rating | 6Amp/250VAC |
|---|---|
| Contact | SPST-NO |
| Operating Voltage | 85-265VAC |
Mechanical Specfications
| Terminal | Screw |
|---|---|
| Body Material | Steel Alloy |
Features
- Universal Supply
- Easy to Install
- LED Indication
- Easy to Set feature like Blankingand Interlock Reset

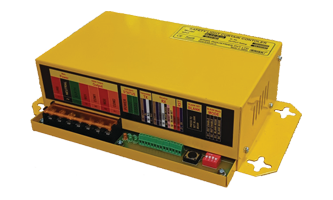

Wall Mount Controller
| Order Code | BLCC-P-UI |
|---|---|
| Operating Range | 85VAC - 265VAC |
| Output Rating | 6Amp |
| Output Type | SPST-NO |
| No Of Channel | 2 Nos. |

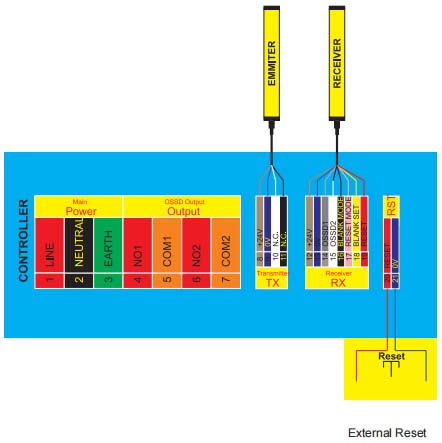

Wiring Diagram
