Standard Limit Switches – Oil Tight
Features
- Compliant with IEC 60947-5-1
- Silver Contact
- Steel Spring
- Highly Reliable
Technical Specifcation
Electrical Specification
| Maximum Rating | 10A / 480 VAC |
|---|---|
| Contact Form | DPDT-CO |
| Contact Resistance | 10 m Ω |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Life | 1 lakh operation |
| High Voltage Test | 1 KV AC between open contacts |
Mechanical Specifcation
| Contact | Silver Contact |
|---|---|
| Spring | Steel Spring |
| Contact Action | Snap Type / Normal |
| Terminals | Screw Terminals |
| Mechanical Life | 1 million operation |
| Body Material | Aluminium PDC |
| Cover Material | MS |
| Terminal Material | Brass |
| IP Rating | IP-65 |

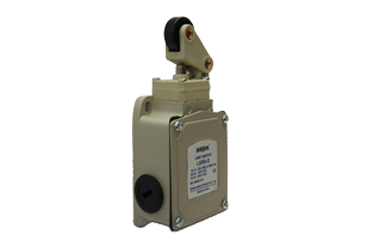

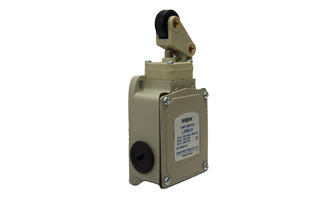

Roller Lever - Oil Tight
| Action | Snap | Normal |
|---|---|---|
| Order Code | LSRS-O | LSR-O |

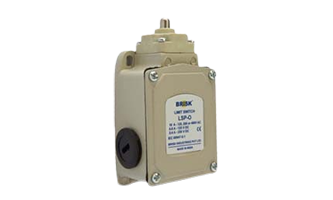

Pin Plunger - Oil Tight
| Action | Snap | Normal |
|---|---|---|
| Order Code | LSPS-O | LSP-O |
