Oil Tight Limit Switches - BLS Series
Features
- Compliant with IEC 60947-5-1
- Silver Contact
- Steel Spring
- Highly Reliable
Technical Specifcation
Electrical Specification
| Maximum Rating | 10A / 250 VAC |
|---|---|
| Contact Form | SPDT-DB |
| Contact Resistance | 10 m Ω |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Life | 1 lakh operation |
| High Voltage Test | 1 KV AC between open contacts |
Mechanical Specifcation
| Contact | Silver contact |
|---|---|
| Spring | Steel Spring |
| Contact Action | Snap Type |
| Terminals | Screw Terminals |
| Mechanical Life | 1 million operation |
| Body Material | Aluminium PDC |
| Cover Material | Aluminium PDC |
| Terminal Material | Brass |
| IP Rating | IP-67 |
Mounting (All Dimensions are in mm)

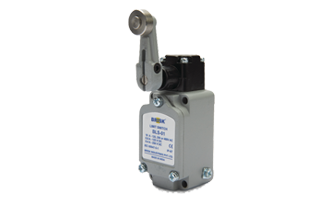

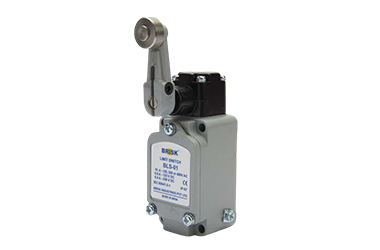

R38 Roller Lever
| Order Code (Snap) | BLS-01 |
R50 Roller Lever
| Order Code (Snap) | BLS-02 |
R64 Roller Lever
| Order Code (Snap) | BLS-03 |
R76 Roller Lever
| Order Code (Snap) | BLS-04 |
Yoke Roller Lever
| Order Code (Snap) | BLS-05 |

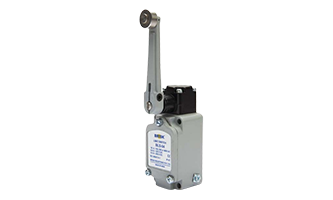

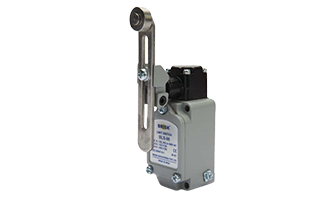

Adjustable Roller Lever
| Order Code (Snap) | BLS-06 |
Adjustable Rod
| Order Code (Snap) | BLS-07 |

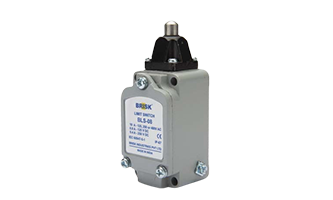

Top Plunger
| Order Code (Snap) | BLS-08 |

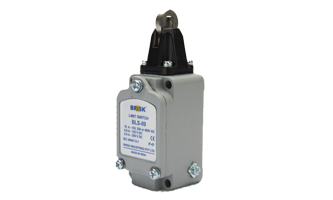

Top Roller Plunger
| Order Code (Snap) | BLS-09 |

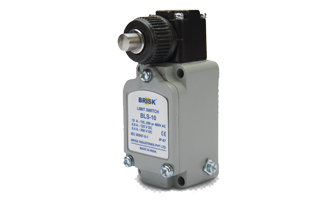

Side Plunger
| Order Code (Snap) | BLS-10 |

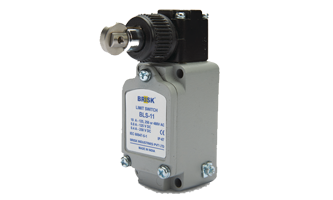

Side Roller Plunger
| Order Code (Snap) | BLS-11 |

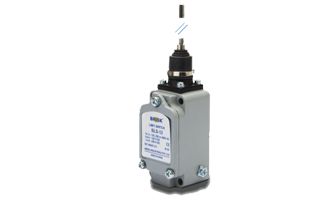

Wobble Lever
| Order Code (Snap) | BLS-12 |
