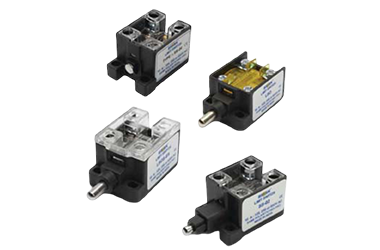

Elements
Features
- Compliant with IEC 60947-5-1
- Silver Contact
- Steel Spring
- Highly Reliable
Technical Specifcation
Electrical Specification
| Maximum Rating | 10A / 500 VAC |
|---|---|
| Contact Form | DPDT-CO |
| Contact Resistance | 10 m Ω |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Life | 1 lakh operation |
| High Voltage Test | 1 KV AC between open contacts |
Mechanical Specifcation
| Contact | Silver Contact |
|---|---|
| Spring | Steel Spring |
| Contact Action | Snap / Normal |
| Terminals | Screw Terminals |
| Mechanical Life | 1 million operation |
| Body Material | Glass Filled Nylon / FR Grade PBT-V0 rated |
| Terminal Material | Brass |

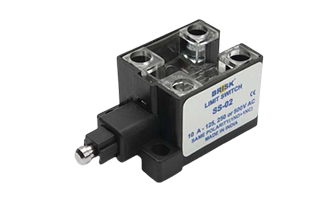

Push Rod (Protective Cover)
| Action | Snap | Normal |
|---|---|---|
| Order Code | SS-02 | - |

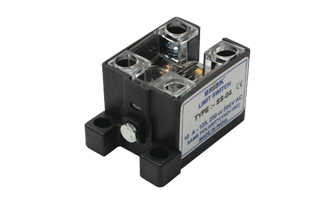

Plunger Type (Protective Cover)
| Action | Snap | Normal |
|---|---|---|
| Order Code | SS-04 | - |

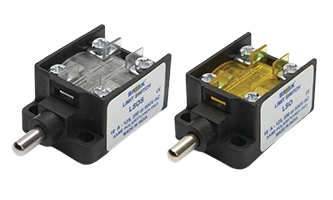

Push Rod (Open Type)
| Action | Snap | Normal |
|---|---|---|
| Order Code | LSOS | LSO |

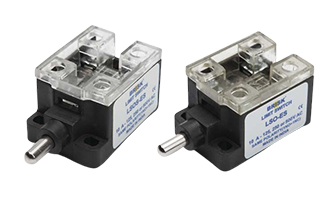

Push Rod (Protective Cover)
| Action | Snap | Normal |
|---|---|---|
| Order Code | LSOS-ES | LSO-ES |

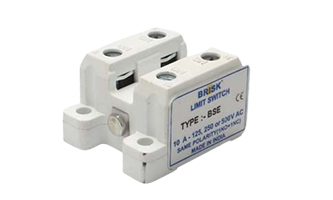

Oil Tight Limit Switch Element
| Action | Snap | Normal |
|---|---|---|
| Order Code | BSE | - |

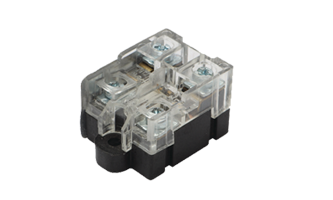

Compact Limit Switch Element
| Action | Snap | Normal |
|---|---|---|
| Order Code | CSE | - |

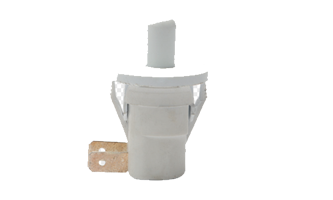

Door Switch (NC Type)
| Action | Snap | Normal |
|---|---|---|
| Order Code | - | WDS-X1 |
