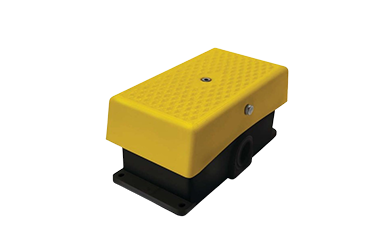

Heavy Duty Reverse Forward Foot Switch
Application
- A reverse-forward foot switch allows hands-free control of a motor’s direction, commonly applied in industrial machinery like tire changers, lathes, and material handling equipment. These switches provide seamless, on-demand directional changes, enhancing operator efficiency and safety by keeping hands free for other tasks.
Features
- Compliant with IEC 60947-5-1
- Silver Contact
- Ease to Operate
- Rugged Design
- Highly Reliable
- Non-skid Base Rubber Pad
- Available in Reverse Forward Pedal

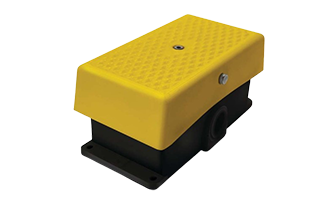

Heavy Duty Reverse Forward Foot Switch- BFS-20 Series
Electrical Specifcations
| Rating | 10Amp/500VAC |
|---|---|
| Contact Form | SPDT-DB/DPDT-DB |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Aluminum PDC |
| Guard / Cover Material | - |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-20/X2 | BFS-20/XX2 |
|---|---|---|
| Electrical Rating | 10A/500VAC | 10A/500VAC |
| Contact Form | 2 (1NO 1NC) | 2 (2NO 2NC) |
| Cable | - | - |
| Pedal Color | Yellow | Yellow |
| Body Color | Black | Black |
| Guard / Cover Color | - | - |
| No. of Pedal | Single | Single |
| Latch | - | - |
| Potentiometer | - | - |
