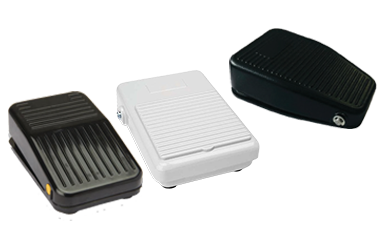

Mini Series Foot Switches
Applications
- Lighter industrial & commercial applications
- Consumer products & audio equipments.
- Office equipments & medical equipments.
Features
- Compliant with IEC 60947-5-1
- Silver Contact
- Ease to Operate
- Rugged Design
- Highly Reliable
- Non-skid Base Rubber Pad
- Available with USB Type
- Available in Plastic version and in Metal version
Technical Specifcation
Electrical Specifications
| Rating | 6Amp/250VAC |
|---|---|
| Contact Form | SPDT/SPST-NO |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100MΩ |
| Electrical Life | 1 lakh operation |
| High Voltage Test | 1 KV AC between open contacts |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Solder |
| Terminal Material | Brass |
| Base Material | Plastic |
| Pedal Material | Plastic |
| Guard / Cover Material | - |
| Mechanical Life | 1 Million Operation |

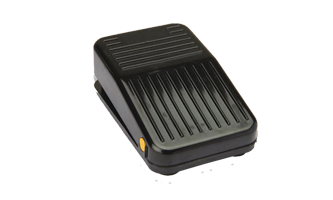

Basic Foot Switch
| Order Code | BFS-00 | BFS-00/C2.2 |
|---|---|---|
| Electrical Rating | 6A/250VAC | 6A/250VAC |
| Contact Form | SPDT | SPST-NO |
| Cable | Without Cable | 2 Core, 2 meter |
| Pedal Color | Black | Black |
| Body Color | Black | Black |
| Guard / Cover Color | - | - |
| No. of Pedal | Single | Single |

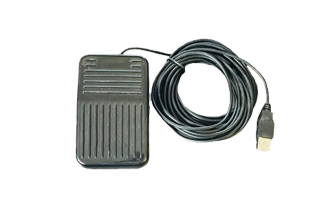

USB Foot Switch
| Order Code | BFS-00/USB/LC/C5 | BFS-00/USB/RC/C5 |
|---|---|---|
| Electrical Rating | USB Type | USB Type |
| Contact Form | Mouse Left Click | Mouse Right Click |
| Cable | 5 meter | 5 meter |
| Pedal Color | Black | Black |
| Body Color | Black | Black |
| Guard / Cover Color | - | - |
| No. of Pedal | Single | Single |

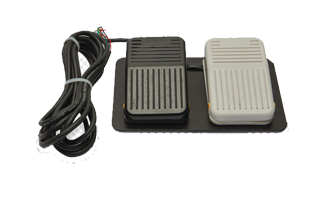

Twin Pedal Foot Switch
| Order Code | BFS-00/T/C4.3 | BFS-00/T/C4.5 |
|---|---|---|
| Electrical Rating | 6A/250VAC | 6A/250VAC |
| Contact Form | 2 SPST-NO | 2 SPST-NO |
| Cable | 4 Core, 3 meter | 4 Core, 5 Meter |
| Pedal Color | Black/White | Black/White |
| Body Color | Black | Black |
| Guard / Cover Color | - | - |
| No. of Pedal | Twin | Twin |

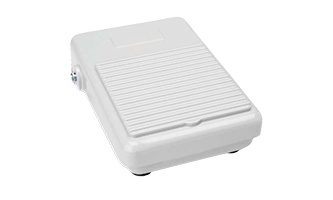

Mini Series Foot Switches - BFS-01 Series
Electrical Specifcations
| Rating | 10Amp/250VAC |
|---|---|
| Contact Form | SPDT/SPST-NO |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contacts |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Solder |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Aluminum PDC |
| Guard / Cover Material | - |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-01/A | BFS-01/A/C2.2 |
|---|---|---|
| Electrical Rating | 10A/250VAC | 10A/250VAC |
| Contact Form | SPDT | SPST-NO |
| Cable | Without Cable | 2 Core, 2 meter |
| Pedal Color | Grey | Grey |
| Body Color | Grey | Grey |
| Guard / Cover Color | - | - |
| No. of Pedal | Single | Single |

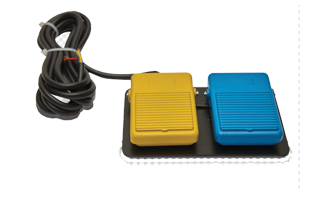

Twin Foot Switch
| Order Code | BFS-01/A/T/C4.3 |
|---|---|
| Electrical Rating | 10Amp/250VAC |
| Contact Form | 2 SPST-NO |
| Cable | 4 Core, 3 meter |
| Pedal Color | Yellow/Blue |
| Body Color | Black |
| Guard / Cover Color | - |
| No. of Pedal | Twin |

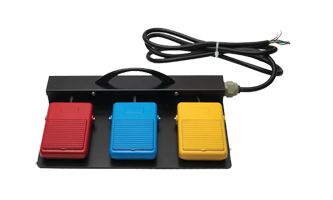

Tripple Pedal Foot Switch
| Order Code | BFS-01/A/TR/H/C6.2 |
|---|---|
| Electrical Rating | 10A/250VAC |
| Contact Form | 3 SPST-NO |
| Cable | 6 Core, 2 meter |
| Pedal Color | Red/Blue/Yellow |
| Body Color | Black |
| Guard / Cover Color | - |
| No. of Pedal | Tripple |

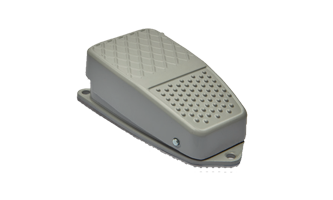

Mini Series Foot Switches - BFS-02 Series
Electrical Specifcations
| Rating | 10Amp/250VAC |
|---|---|
| Contact Form | SPDT/SPST-NO |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contacts |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Solder |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Aluminum PDC |
| Guard / Cover Material | - |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-02/A | BFS-02/A/C2.2 |
|---|---|---|
| Electrical Rating | 10A/250VAC | 10A/250VAC |
| Contact Form | SPDT | SPST-NO |
| Cable | Without Cable | 2 Core, 2 meter |
| Pedal Color | Grey | Grey |
| Body Color | Grey | Grey |
| Guard / Cover Color | - | - |
| No. of Pedal | Single | Single |

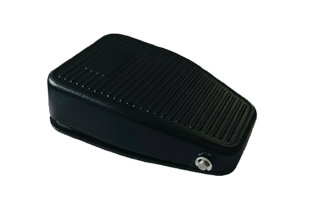

Mini Series Foot Switches - BFS-17 Series
Electrical Specifcations
| Rating | 6Amp/250VAC |
|---|---|
| Contact Form | SPST-NO |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100MΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contacts |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Solder |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Aluminum PDC |
| Guard / Cover Material | - |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-17/C2.2 |
|---|---|
| Electrical Rating | 6A/250VAC |
| Contact Form | SPST-NO |
| Cable | 2 Core, 2 meter |
| Pedal Color | Black |
| Body Color | Black |
| Guard / Cover Color | |
| No. of Pedal | Single |

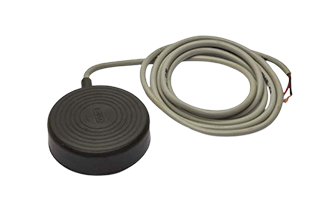

Mini Series Foot Switches - BFS-06 Series
Electrical Specifcations
| Rating | 6Amp/250VAC |
|---|---|
| Contact Form | SPDT/SPST-NO |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Solder |
| Terminal Material | Brass |
| Base Material | Rubber |
| Pedal Material | Rubber |
| Guard / Cover Material | - |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-06/C2.2 |
|---|---|
| Electrical Rating | 6A/250VAC |
| Contact Form | SPST-NO |
| Cable | 2 Core, 2 meter |
| Pedal Color | Black |
| Body Color | Black |
| Guard / Cover Color | - |
| No. of Pedal | Single |
