Standard Micro Switches – B1 Series
Features
- Compliant with IEC 60947-5-1
- Silver contact
- Beryllium Copper Spring
- Highly Reliable
Technical Specifcation
Electrical Specification
| Maximum Rating | 15A / 250V AC |
|---|---|
| Contact Form | SPDT |
| Contact Resistance | 10 m Ω |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Life | 1 lakh operation |
| High Voltage Test | 1 KV AC between open contacts |
Mechanical Specifcation
| Contact | Silver contact |
|---|---|
| Spring | Beryllium Copper |
| Terminals |
FIN Type - Solder Terminals T Type - Screw Terminals |
| Mechanical Life | 1 million operation |
| Body Material | FR Grade PBT - V0 Rated |
| Terminal Material | Brass |
Terminals
FIN-TYPE (5AMP)

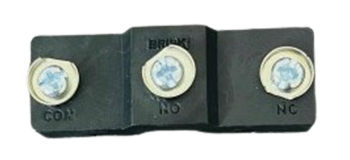

T-TYPE (15AMP)
Mounting (All Dimensions are in mm)
Two 4.2 Dia. Mounting Holes or M4
Panel Mount Plunger
Panel Mount Roller Plunger

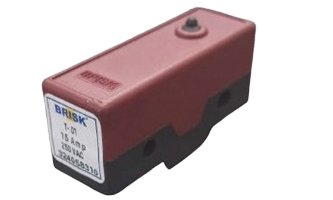

Pin Plunger (Basic)
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-01 | Fin-01 |

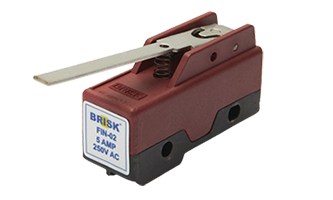

Plain Lever (Long)
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-02 | Fin-02 |

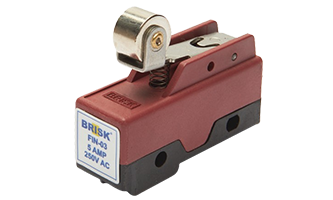

Roller Lever (Short)
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-03 | Fin-03 |

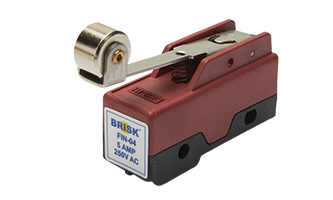

Roller Lever (Long)
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-04 | Fin-04 |

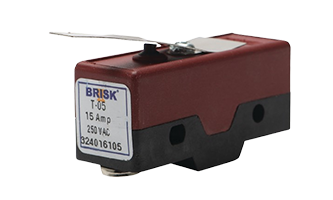

Plain Leaf (Flexible)
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-05 | Fin-05 |

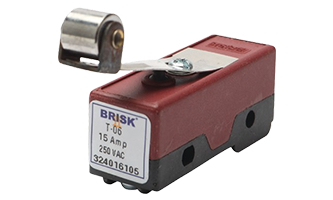

Roller Leaf (Flexible)
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-06 | Fin-06 |

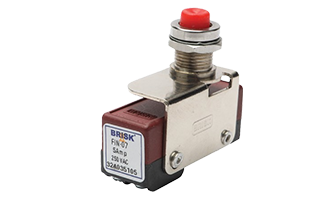

Finger Push Button
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-07 | Fin-07 |

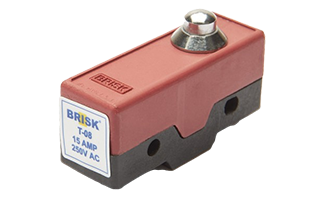

Overtravel Plunger (Compact)
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-08 | Fin-08 |

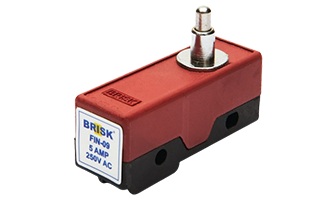

Overtravel Plunger (Extended)
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-09 | Fin-09 |

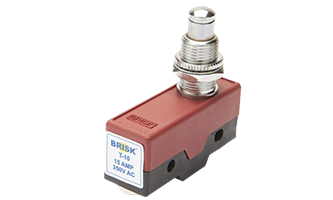

Panel Mount Plunger
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-10 | Fin-10 |

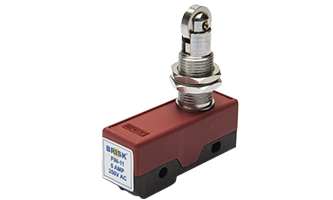

Panel Mount Roller Plunger (Cross)
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-11 | Fin-11 |

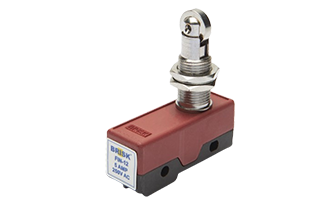

Panel Mount Roller Plunger (Across)
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-12 | Fin-12 |

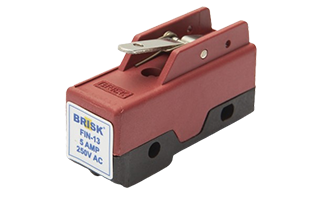

Plain Lever (Short)(RA)
RA: Reverse Acting
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-13 | Fin-13 |

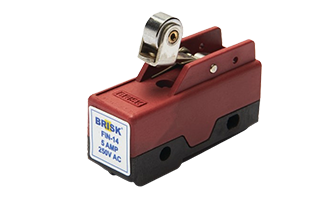

Roller Lever (Short)(RA)
RA: Reverse Acting
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-14 | Fin-14 |

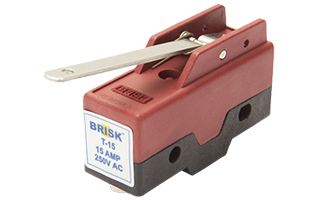

Plain Lever (Medium)(RA)
RA: Reverse Acting
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-15 | Fin-15 |

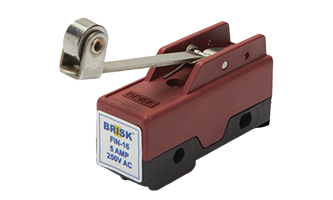

Roller Lever (Medium)(RA)
RA: Reverse Acting
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-16 | Fin-16 |

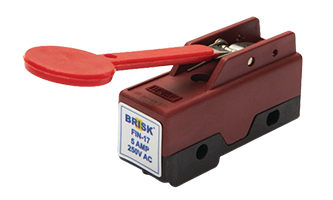

Plain Lever (PVC) (RA)
RA: Reverse Acting
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-17 | Fin-17 |

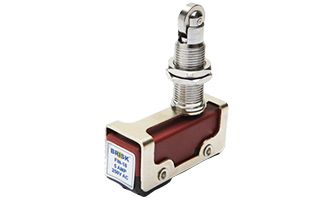

Panel Mount Roller Plunger (Auxiliary)
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-18 | Fin-18 |

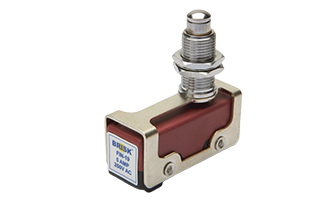

Panel Mount Plunger (Auxiliary)
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-19 | Fin-19 |

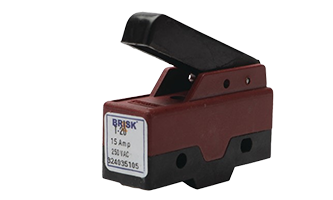

Plain Lever (Short) (Plastic)
| Terminal | SCREW | SOLDER |
|---|---|---|
| Order Code | T-20 | Fin-20 |

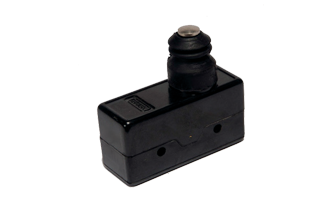

Overtravel Plunger (Sp. Extended)
| Terminal | SCREW |
|---|---|
| Order Code | BMS-7 |
