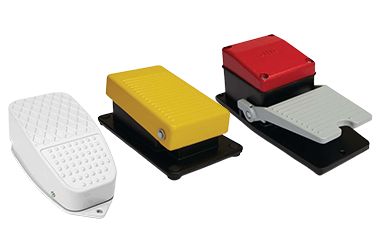

Medium Series Foot Switches
Application
- Dentist Chair
- Power Tools
- Hotel Industry for various on/off applications
- Operating ENT Machines
- Tattoo Machine
Features
- Compliant with IEC 60947-5-1
- Silver Contact
- Ease to Operate
- Rugged Design
- Highly Reliable
- Non-skid Base Rubber Pad

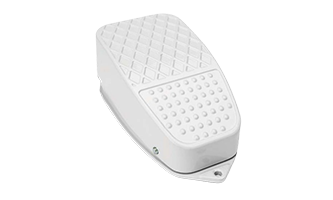

Medium Duty Foot Switches - BFS-03 Series
Electrical Specifcations
| Rating | 15Amp/250VAC |
|---|---|
| Contact Form | SPDT/SPST-NO/POPO |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Aluminum PDC |
| Guard / Cover Material | - |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-03/B | BFS-03/B/C2.2 | BFS-03/Z/C2.2 |
|---|---|---|---|
| Electrical Rating | 15A/250VAC | 15A/250VAC | 10A/250VAC |
| Contact Form | SPDT | SPST-NO | POPO |
| Cable | Without Cable | 2 Core, 2 meter | 2 Core, 2 meter |
| Pedal Color | Grey | Grey | Grey |
| Body Color | Grey | Grey | Grey |
| Guard / Cover Color | - | - | - |
| No. of Pedal | Single | Single | Single |

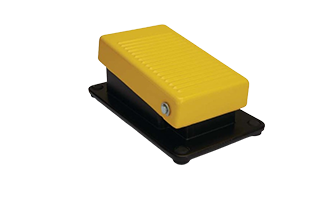

Medium Duty Foot Switches - BFS-13 Series
Electrical Specifcations
| Rating | 10Amp/250VAC |
|---|---|
| Contact Form | SPDT/SPST-NO/POPO |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Aluminum PDC |
| Guard / Cover Material | - |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-13/A | BFS-13/A/C2.2 | BFS-13/Z/C2.2 |
|---|---|---|---|
| Electrical Rating | 10A/250VAC | 10A/250VAC | 10A/250VAC |
| Contact Form | SPDT | SPST-NO | POPO |
| Cable | - | 2 Core, 2 meter | 2 Core, 2 meter |
| Pedal Color | Yellow | Yellow | Yellow |
| Body Color | Black | Black | Black |
| Guard / Cover Color | - | - | - |
| No. of Pedal | Single | Single | Single |

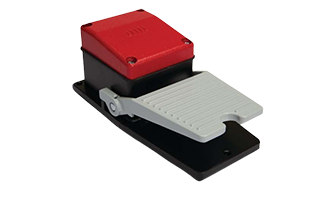

Medium Duty Foot Switches - BFS-04 Series
Electrical Specifcations
| Rating | 15Amp/250VAC |
|---|---|
| Contact Form | SPDT/SPDT-DB/DPDT-DB |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Aluminum PDC |
| Guard / Cover Material | Plastic / Aluminum PDC |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-04/B | BFS-04/X | BFS-04/XX |
|---|---|---|---|
| Electrical Rating | 15A/250VAC | 10A/500VAC | 10A/500VAC |
| Contact Form | SPDT | 1NO 1NC | 2NO 2NC |
| Cable | - | - | - |
| Pedal Color | Grey | Grey | Grey |
| Body Color | Black | Black | Black |
| Guard / Cover Color | Red | Red | Red |
| No. of Pedal | Single | Single | Single |

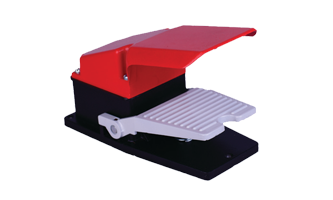

Medium Duty Foot Switches - BFS-05 Series
Electrical Specifcations
| Rating | 15Amp/250VAC |
|---|---|
| Contact Form | SPDT/ SPDT-DB/DPDT-DB |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Aluminum PDC |
| Guard / Cover Material | Aluminum PDC |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-05/B | BFS-05/X | BFS-05/XX |
|---|---|---|---|
| Electrical Rating | 15A/250VAC | 10A/500VAC | 10A/500VAC |
| Contact Form | SPDT | 1NO 1NC | 2NO 2NC |
| Cable | - | - | - |
| Pedal Color | Grey | Grey | Grey |
| Body Color | Black | Black | Black |
| Guard / Cover Color | Red | Red | Red |
| No. of Pedal | Single | Single | Single |

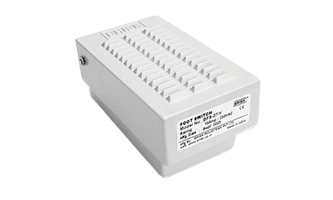

Medium Duty Foot Switches - BFS-07 Series
Electrical Specifcations
| Rating | 10Amp/250VAC |
|---|---|
| Contact Form | DPDT-NO |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Aluminum PDC |
| Guard / Cover Material | - |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-07/Y |
|---|---|
| Electrical Rating | 10A/250VAC |
| Contact Form | DPDT-NO |
| Cable | - |
| Pedal Color | Grey |
| Body Color | Grey |
| Guard / Cover Color | - |
| No. of Pedal | Single |

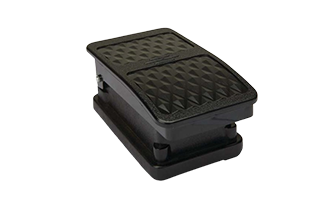

Medium Duty Foot Switches - BFS-16 Series
Electrical Specifcations
| Rating | 15Amp/250VAC |
|---|---|
| Contact Form | SPDT-NO |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Plastic |
| Pedal Material | Plastic |
| Guard / Cover Material | - |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-16/B/C2.2 |
|---|---|
| Electrical Rating | 15A/250VAC |
| Contact Form | SPDT-NO |
| Cable | 2 Core, 2 meter |
| Pedal Color | Black |
| Body Color | Black |
| Guard / Cover Color | - |
| No. of Pedal | Single |
