Compact Limit Switches - BCL Series
Features
- Compliant with IEC 60947-5-1
- Silver Contact
- Steel Spring
- Highly Reliable
Technical Specifcation
Electrical Specification
| Maximum Rating | 10A / 250V AC |
|---|---|
| Contact Form | SPDT-DB |
| Contact Resistance | 10 m Ω |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Life | 1 lakh operation |
| High Voltage Test | 1 KV AC between open contacts |
Mechanical Specifcation
| Contact | Silver contact |
|---|---|
| Spring | Steel Spring |
| Terminals | Screw Terminals |
| Mechanical Life | 1 million operationn |
| Body Material | Zinc Casting |
| Cover Material | Glass Filled Nylon |
| Terminal Material | Brass |
| IP Rating | IP-65 |
Mounting (All Dimensions are in mm)

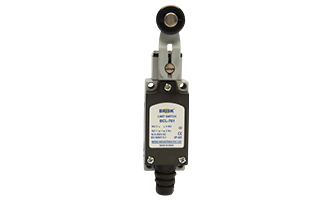

Roller Lever
| Order Code (Snap) | BCL-701 |

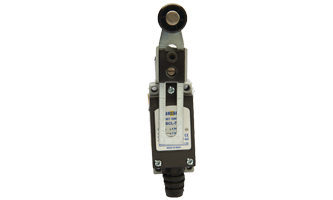

Adjustable Roller Lever
| Order Code (Snap) | BCL-706 |

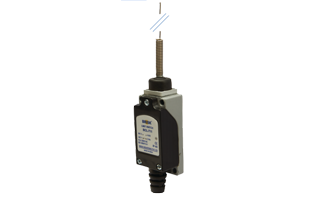

Adjustable Rod
| Order Code (Snap) | BCL-707 |

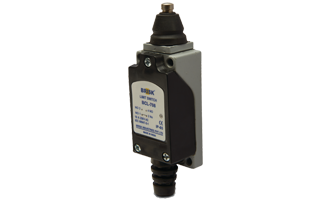

Top Plunger
| Order Code (Snap) | BCL-708 |

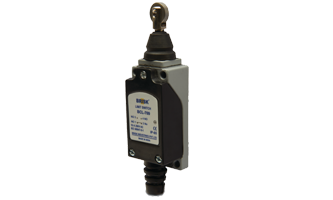

Top Roller Plunger
| Order Code (Snap) | BCL-709 |

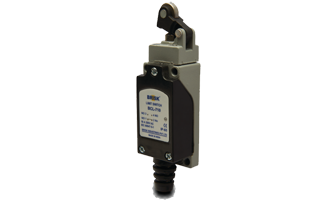

Angular Roller Plunger
| Order Code (Snap) | BCL-710 |
Spring Wobble Lever
| Order Code (Snap) | BCL-711 |

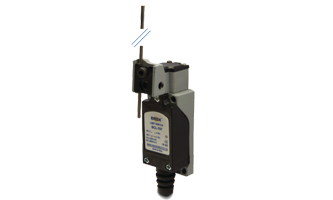

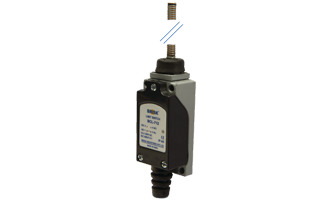

Wobble Rod
| Order Code (Snap) | BCL-712 |
