Precision Limit Switches - BPS Series
Features
- Compliant with IEC 60947-5-1
- Rugged & Highly Reliable design
- Quick MAKE & BREAK action
Technical Specifcation
Electrical Specification
| Maximum Rating | 10A / 500V AC |
|---|---|
| Contact Form | SPDT-DB / DPDT-DB |
| Contact Resistance | 10 m Ω |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Life | 1 lakh operation |
| High Voltage Test | 1 KV AC between open contacts |
Mechanical Specifcation
| Contact | Silver contact |
|---|---|
| Spring | Steel Spring |
| Terminals | Screw Terminals |
| Mechanical Life | 1 million operation |
| Body Material | FR Grade PBT - V0 Rated |
| Terminal Material | Brass |
Terminals and Contact Forms

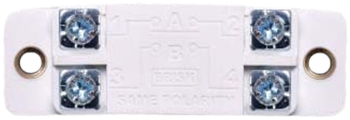

SPDT-DB (1NO+1NC)

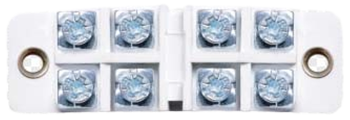

DPDT-DB (2NO+2NC)
Mounting (All Dimensions are in mm)
Two 4.2 Dia. Mounting Holes or M4
Panel Mount Plunger

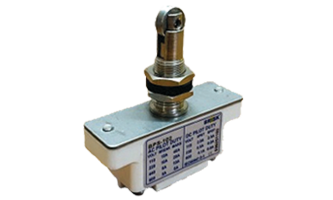

Panel Mount Roller Plunger

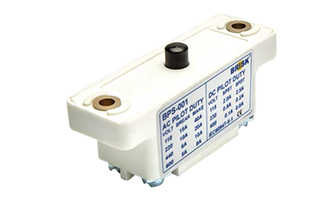

Pin Plunger (Basic)
| Contact | 1NO+1NC | 2NO+2NC |
|---|---|---|
| Order Code | BPS-001 | BPS-002 |

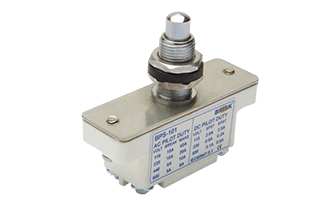

Panel Mount Plunger
| Contact | 1NO+1NC | 2NO+2NC |
|---|---|---|
| Order Code | BPS-101 | BPS-201 |

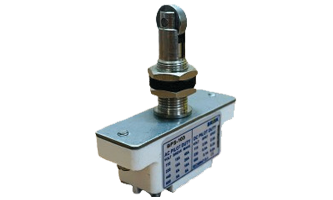

Panel Mount Roller Plunger (Cross)
| Contact | 1NO+1NC | 2NO+2NC |
|---|---|---|
| Order Code | BPS-102 | BPS-202 |
Panel Mount Roller Plunger (Across)
| Contact | 1NO+1NC | 2NO+2NC |
|---|---|---|
| Order Code | BPS-103 | BPS-203 |

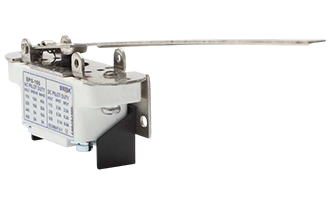

Plain Lever 6 inch Right Hand
| Contact | 1NO+1NC | 2NO+2NC |
|---|---|---|
| Order Code | BPS-104 | BPS-204 |

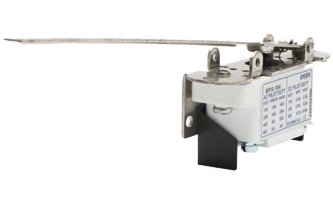

Plain Lever 6 inch Left Hand
| Contact | 1NO+1NC | 2NO+2NC |
|---|---|---|
| Order Code | BPS-105 | BPS-205 |

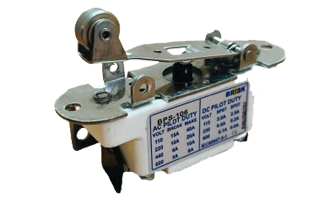

Roller Lever Right Hand
| Contact | 1NO+1NC | 2NO+2NC |
|---|---|---|
| Order Code | BPS-106 | BPS-206 |

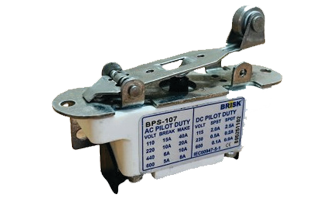

Roller Lever Left Hand
| Contact | 1NO+1NC | 2NO+2NC |
|---|---|---|
| Order Code | BPS-107 | BPS-207 |

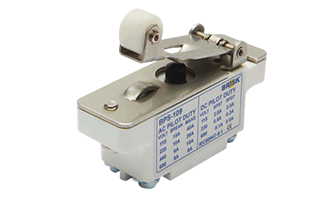

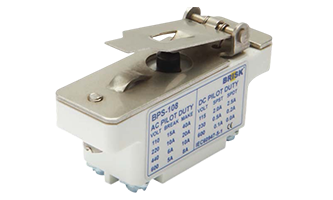

Short Plain Lever
| Contact | 1NO+1NC | 2NO+2NC |
|---|---|---|
| Order Code | BPS-108 | BPS-208 |
Short Roller Lever
| Contact | 1NO+1NC | 2NO+2NC |
|---|---|---|
| Order Code | BPS-109 | BPS-209 |
