Heavy Duty Twin Foot Switches
Application
- Application in which operating needs to use simultaneously or perform opposing actions
- Used for equipment like stamping presses, lathes, power tools, and welding equipment. One pedal might start a process while the other stops it.
Features
- Compliant with IEC 60947-5-1
- Silver Contact
- Ease to Operate
- Rugged Design
- Highly Reliable
- Non-skid Base Rubber Pad
- Available in Double Pedal

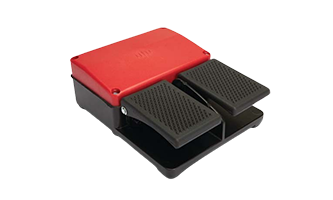

Heavy Duty Twin Foot Switch - BFS-08 Series
Electrical Specifcations
| Rating | 10Amp/500VAC |
|---|---|
| Contact Form | DPDT-CO/SPDT-DB/DPDT-DB |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Glass Filled Nylon |
| Guard / Cover Material | Polycarbonate / Aluminum PDC |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-08/LS | BFS-08/X2 | BFS-08/XX2 |
|---|---|---|---|
| Electrical Rating | 10A/500VAC | 10A/500VAC | 10A/500VAC |
| Contact Form | 2 (1NO 1NC) | 2 (1NO 1NC) | 2 (2NO 2NC) |
| Cable | - | - | - |
| Pedal Color | Black | Black | Black |
| Body Color | Black | Black | Black |
| Guard / Cover Color | Red | Red | Red |
| No. of Pedal | Twin | Twin | Twin |
| Latch | - | - | - |
| Potentiometer | - | - | - |

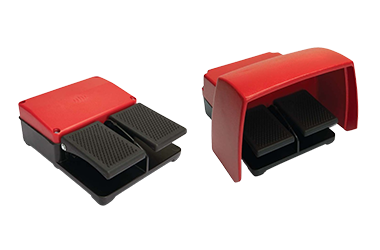

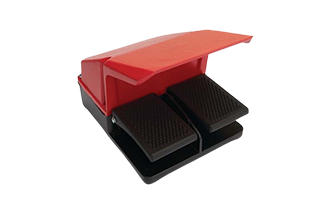

Heavy Series Double Pedal - BFS-09 Series
Electrical Specifcations
| Rating | 10Amp/500VAC |
|---|---|
| Contact Form | DPDT-CO/SPDT-DB/DPDT-DB |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Glass Filled Nylon |
| Guard / Cover Material | Aluminum PDC |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-09/LS | BFS-09/X2 | BFS-09/XX2 |
|---|---|---|---|
| Electrical Rating | 10A/500VAC | 10A/500VAC | 10A/500VAC |
| Contact Form | 2 (1NO 1NC) | 2 (1NO 1NC) | 2 (2NO 2NC) |
| Cable | - | - | - |
| Pedal Color | Black | Black | Black |
| Body Color | Black | Black | Black |
| Guard / Cover Color | Red | Red | Red |
| No. of Pedal | Twin | Twin | Twin |
| Latch | - | - | - |
| Potentiometer | - | - | - |

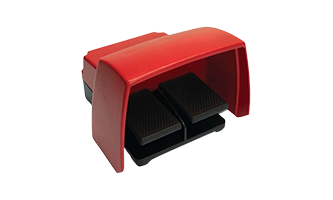

Heavy Series Double Pedal - BFS-18 Series
Electrical Specifcations
| Rating | 10Amp/500VAC |
|---|---|
| Contact Form | DPDT-CO/SPDT-DB/DPDT-DB |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Glass Filled Nylon |
| Guard / Cover Material | Aluminum PDC |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-18/LS | BFS-18/X2 | BFS-18/XX2 |
|---|---|---|---|
| Electrical Rating | 10A/500VAC | 10A/500VAC | 10A/500VAC |
| Contact Form | 2 (1NO 1NC) | 2 (1NO 1NC) | 2 (2NO 2NC) |
| Cable | - | - | - |
| Pedal Color | Black | Black | Black |
| Body Color | Black | Black | Black |
| Guard / Cover Color | Red | Red | Red |
| No. of Pedal | Twin | Twin | Twin |
| Latch | - | - | - |
| Potentiometer | - | - | - |
