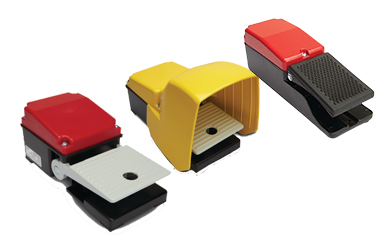

Heavy Series Foot Switches
Application
- Operating Industrial Machines like Welding, Power Press
- Used in Automation Systems for Safety applications
Features
- Compliant with IEC 60947-5-1
- Silver Contact
- Ease to Operate
- Rugged Design
- Highly Reliable
- Non-skid Base Rubber Pad

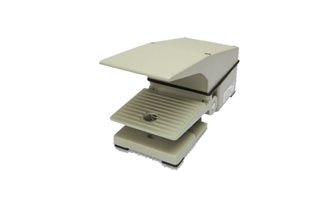

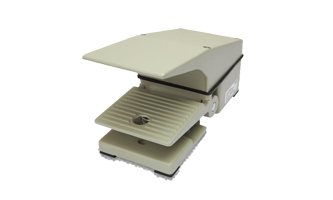

Heavy Series Foot Switch - BFS-10 Series
Electrical Specifcations
| Rating | 10Amp/500VAC |
|---|---|
| Contact Form | SPDT-DB / DPDT-DB |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Aluminum PDC |
| Guard / Cover Material | Aluminum PDC |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch 1NO 1NC Type
| Order Code | BFS-10/X | BFS-10/X2 | BFS-10/X/L |
|---|---|---|---|
| Electrical Rating | 10A/500VAC | 10A/500VAC | 10A/500VAC |
| Contact Form | 1NO 1NC | 2 (1NO 1NC) | 1NO 1NC |
| Cable | - | - | - |
| Pedal Color | Grey | Grey | Grey |
| Body Color | Grey | Grey | Grey |
| Guard / Cover Color | Grey | Grey | Grey |
| No. of Pedal | Single | Single | Single |
| Latch | - | - | Yes |
| Potentiometer | - | - | - |
Basic Foot Switch 2NO 2NC Type
| Order Code | BFS-10/XX | BFS-10/XX2 | BFS-10/XX/L |
|---|---|---|---|
| Electrical Rating | 10A/500VAC | 10A/500VAC | 10A/500VAC |
| Contact Form | 2NO 2NC | 2 (2NO 2NC) | 2NO 2NC |
| Cable | - | - | - |
| Pedal Color | Grey | Grey | Grey |
| Body Color | Grey | Grey | Grey |
| Guard / Cover Color | Grey | Grey | Grey |
| No. of Pedal | Single | Single | Single |
| Latch | - | - | Yes |
| Potentiometer | - | - | - |

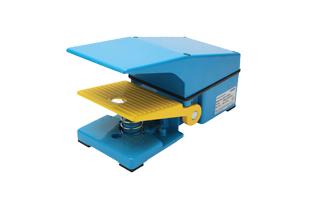

Basic Foot Switch with Potentiometer
| Order Code | BFS-10/XX/P5K | BFS-10/XX/P10K |
|---|---|---|
| Electrical Rating | 10A/500VAC | 10A/500VAC |
| Contact Form | 2NO 2NC | 2NO 2NC |
| Cable | - | - |
| Pedal Color | Yellow | Yellow |
| Body Color | Blue | Blue |
| Guard / Cover Color | Blue | Blue |
| No. of Pedal | Single | Single |
| Latch | - | - |
| Potentiometer | 5KΩ | 10KΩ |

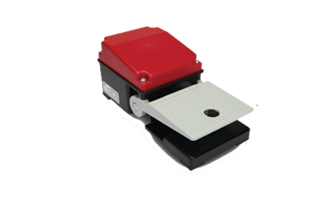

Heavy Series Foot Switch - BFS-11 Series
Electrical Specifcations
| Rating | 10Amp/500VAC |
|---|---|
| Contact Form | SPDT-DB / DPDT-DB |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Aluminum PDC |
| Guard / Cover Material | Polycarbonate / Aluminum PDC |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch 1NO 1NC Type
| Order Code | BFS-11/X | BFS-11/X2 | BFS-11/X/L |
|---|---|---|---|
| Electrical Rating | 10A/500VAC | 10A/500VAC | 10A/500VAC |
| Contact Form | 1NO 1NC | 2 (1NO 1NC) | 1NO 1NC |
| Cable | - | - | - |
| Pedal Color | Grey | Grey | Grey |
| Body Color | Black | Black | Black |
| Guard / Cover Color | Red | Red | Red |
| No. of Pedal | Single | Single | Single |
| Latch | - | - | Yes |
| Potentiometer | - | - | - |
Basic Foot Switch 2NO 2NC Type
| Order Code | BFS-11/XX | BFS-11/XX2 | BFS-11/XX/L |
|---|---|---|---|
| Electrical Rating | 10A/500VAC | 10A/500VAC | 10A/500VAC |
| Contact Form | 2NO 2NC | 2 (2NO 2NC) | 2NO 2NC |
| Cable | - | - | - |
| Pedal Color | Grey | Grey | Grey |
| Body Color | Black | Black | Black |
| Guard / Cover Color | Red | Red | Red |
| No. of Pedal | Single | Single | Single |
| Latch | - | - | Yes |
| Potentiometer | - | - | - |

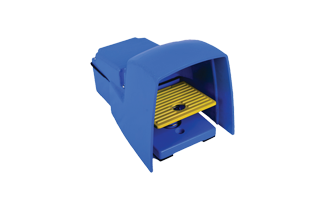

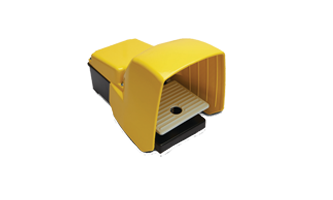

Heavy Series Foot Switch - BFS-12 Series
Electrical Specifcations
| Rating | 10Amp/500VAC |
|---|---|
| Contact Form | SPDT-DB / DPDT-DB |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Aluminum PDC |
| Guard / Cover Material | Aluminum PDC |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch 1NO 1NC Type
| Order Code | BFS-12/X | BFS-12/X2 | BFS-12/X/L |
|---|---|---|---|
| Electrical Rating | 10A/500VAC | 10A/500VAC | 10A/500VAC |
| Contact Form | 1NO 1NC | 2 (1NO 1NC) | 1NO 1NC |
| Cable | - | - | - |
| Pedal Color | Grey | Grey | Grey |
| Body Color | Black | Black | Black |
| Guard / Cover Color | Yellow | Yellow | Yellow |
| No. of Pedal | Single | Single | Single |
| Latch | - | - | Yes |
| Potentiometer | - | - | - |
Basic Foot Switch 2NO 2NC Type
| Order Code | BFS-12/XX | BFS-12/XX2 | BFS-12/XX/L |
|---|---|---|---|
| Electrical Rating | 10A/500VAC | 10A/500VAC | 10A/500VAC |
| Contact Form | 2NO 2NC | 2 (2NO 2NC) | 2NO 2NC |
| Cable | - | - | - |
| Pedal Color | Grey | Grey | Grey |
| Body Color | Black | Black | Black |
| Guard / Cover Color | Yellow | Yellow | Yellow |
| No. of Pedal | Single | Single | Single |
| Latch | - | - | Yes |
| Potentiometer | - | - | - |
Basic Foot Switch with Potentiometer
| Order Code | BFS-12/XX/P5K | BFS-12/XX/P10K |
|---|---|---|
| Electrical Rating | 10A/500VAC | 10A/500VAC |
| Contact Form | 2NO 2NC | 2NO 2NC |
| Cable | - | - |
| Pedal Color | Yellow | Yellow |
| Body Color | Blue | Blue |
| Guard / Cover Color | Blue | Blue |
| No. of Pedal | Single | Single |
| Latch | - | - |
| Potentiometer | 5KΩ | 10KΩ |

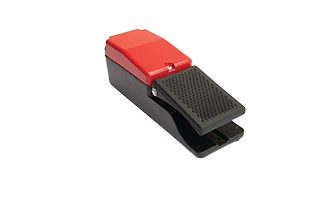

Heavy Series Foot Switch - BFS-14 Series
Electrical Specifcations
| Rating | 10Amp/500VAC |
|---|---|
| Contact Form | DPDT-CO |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Glass Filled Nylon / Metal |
| Guard / Cover Material | Aluminum PDC |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-14/LS |
|---|---|
| Electrical Rating | 10A/500VAC |
| Contact Form | 1NO 1NC |
| Cable | - |
| Pedal Color | Black |
| Body Color | Black |
| Guard / Cover Color | Red |
| No. of Pedal | Single |
| Latch | - |
| Potentiometer | - |

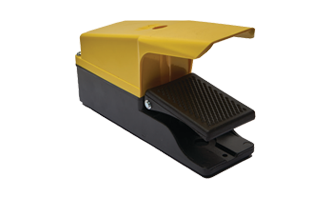

Heavy Series Foot Switch - BFS-19 Series
Electrical Specifcations
| Rating | 10Amp/500VAC |
|---|---|
| Contact Form | DPDT-CO |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Glass Filled Nylon / Metal |
| Guard / Cover Material | Polycarbonate |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-19/LS |
|---|---|
| Electrical Rating | 10A/500VAC |
| Contact Form | 1NO 1NC |
| Cable | - |
| Pedal Color | Black |
| Body Color | Black |
| Guard / Cover Color | Yellow |
| No. of Pedal | Single |
| Latch | - |
| Potentiometer | - |

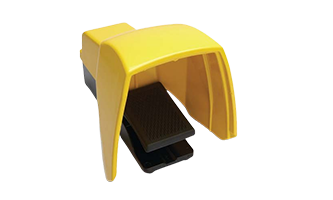

Heavy Series Foot Switch - BFS-15 Series
Electrical Specifcations
| Rating | 10Amp/500VAC |
|---|---|
| Contact Form | DPDT-CO |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Aluminum PDC |
| Pedal Material | Glass Filled Nylon / Metal |
| Guard / Cover Material | Aluminum PDC |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-15/LS |
|---|---|
| Electrical Rating | 10A/500VAC |
| Contact Form | 1NO 1NC |
| Cable | - |
| Pedal Color | Black |
| Body Color | Black |
| Guard / Cover Color | Yellow |
| No. of Pedal | Single |
| Latch | - |
| Potentiometer | - |

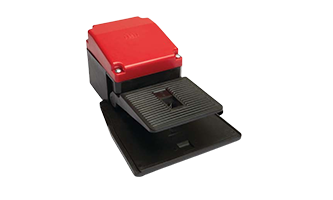

Heavy Series Foot Switch - BFS-21 Series
Electrical Specifcations
| Rating | 10Amp/500VAC |
|---|---|
| Contact Form | SPDT/SPDT-DB/DPDT-DB |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Glass Filled Nylon |
| Pedal Material | Glass Filled Nylon |
| Guard / Cover Material | Polycarbonate |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-21/B | BFS-21/X | BFS-21/XX |
|---|---|---|---|
| Electrical Rating | 15A/250VAC | 10A/500VAC | 10A/500VAC |
| Contact Form | SPDT | 1NO 1NC | 2NO 2NC |
| Cable | - | - | - |
| Pedal Color | Black | Black | Black |
| Body Color | Black | Black | Black |
| Guard / Cover Color | Red | Red | Red |
| No. of Pedal | Single | Single | Single |
| Latch | - | - | - |
| Potentiometer | - | - | - |

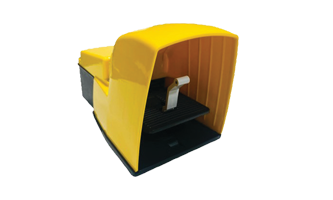

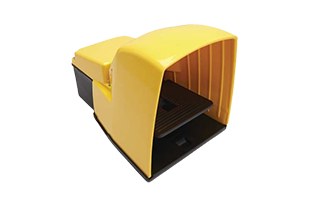

Heavy Series Foot Switch - BFS-22 Series
Electrical Specifcations
| Rating | 15Amp/250VAC |
|---|---|
| Contact Form | SPDT/SPDT-DB/DPDT-DB |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 100mΩ |
| Electrical Life | 1 Lakh Operation |
| High Voltage Test | 1 KVAC between Open Contact |
Mechanical Specifcations
| Contact | Silver |
|---|---|
| Terminal | Screw |
| Terminal Material | Brass |
| Base Material | Glass Filled Nylon |
| Pedal Material | Glass Filled Nylon |
| Guard / Cover Material | Polycarbonate |
| Mechanical Life | 1 Million Operation |
Basic Foot Switch
| Order Code | BFS-22/B | BFS-22/X | BFS-22/XX |
|---|---|---|---|
| Electrical Rating | 15A/250VAC | 10A/500VAC | 10A/500VAC |
| Contact Form | SPDT | 1NO 1NC | 2NO 2NC |
| Cable | - | - | - |
| Pedal Color | Black | Black | Black |
| Body Color | Black | Black | Black |
| Guard / Cover Color | Yellow | Yellow | Yellow |
| No. of Pedal | Single | Single | Single |
| Latch | - | - | - |
| Potentiometer | - | - | - |
Basic Foot Switch with Safety Latch
| Order Code | BFS-22/B/SL | BFS-22/X/SL | BFS-22/XX/SL |
|---|---|---|---|
| Electrical Rating | 15A/250VAC | 10A/500VAC | 10A/500VAC |
| Contact Form | SPDT | 1NO 1NC | 2NO 2NC |
| Cable | - | - | - |
| Pedal Color | Black | Black | Black |
| Body Color | Black | Black | Black |
| Guard / Cover Color | Yellow | Yellow | Yellow |
| No. of Pedal | Single | Single | Single |
| Latch | Safety Latch | Safety Latch | Safety Latch |
| Potentiometer | - | - | - |
